Dragon 32 Soak Test

From The Dragon Archive

A cartridge designed to test the Dragon 32 hardware in a loop.

The ROM program will change a pattern on screen and lit a green led on the cartridge if tests are passing, and freeze the machine and lit a red led if any test fails.

The cartridge will not work on a Dragon 64 or a Dragon 200 as it performs a ROM checksum and later models will make the checksum test fail.

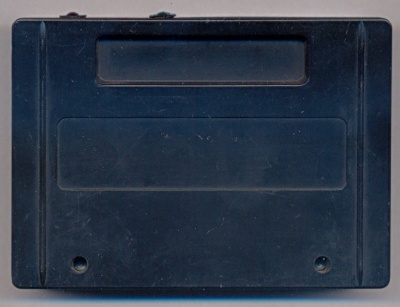

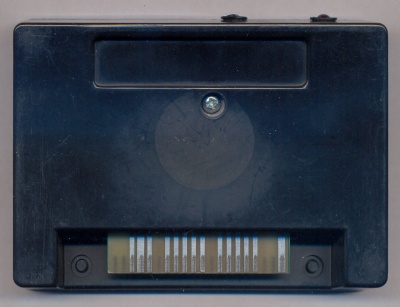

Dragon32 SoakTest Top.jpgDragon32 SoakTest Bottom.jpg

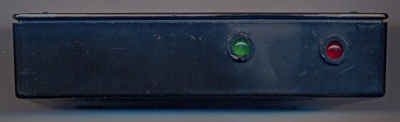

Dragon32 SoakTest Front.jpg

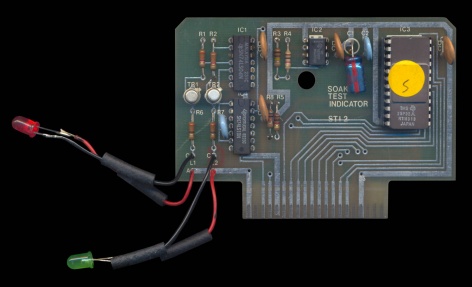

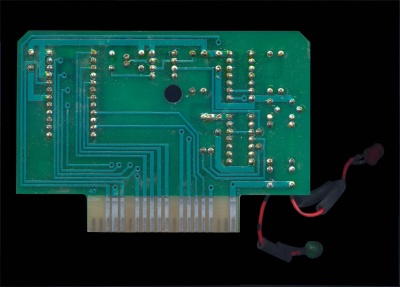

Dragon32 SoakTest PCB Top.jpgDragon32 SoakTest PCB Bottom.jpg

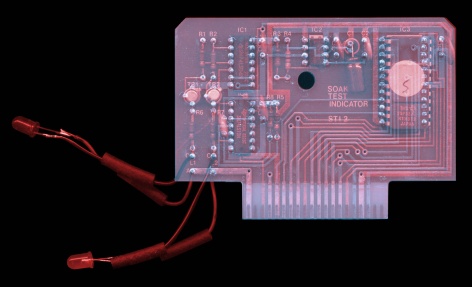

Dragon32 SoakTest PCB Composite.jpg
